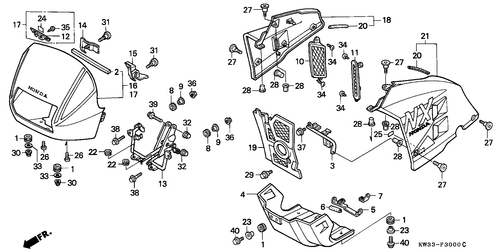

Cowl

Ref.	Model	Image	Product name	Price	Qty.	Buy now
1	33712KT1670		Rubber, Taillight	n/a	6
2	37223KW3000		Rubber, Sponge	n/a	1
3	50165KW3000		Stay Comp., links Side Cowl	n/a	1
4	50351KW3000ZA		Cover, Engine Under Colour: G120	n/a	1
7	50359KW3000		Sub Stay, Engine Under Cover	n/a	1
8	64121KV0000		Rubber A, Side Shelter	n/a	2
9	64123KV0000		Collar, Side Shelter	n/a	2
10	64205KW3670		Cover, rechts Air Duct	n/a	1
11	64215KW3670		Cover, links Air Duct	n/a	1
16	64550KW3610ZF		Fairing Set, Fr. (wl)	n/a	1
16	64550KW3610ZG		Fairing Set, Fr. (wl)	n/a	1
16	64550KW3610ZE		Fairing Set, Fr. (wl)	n/a	1
18	64600KW3610ZB		Fairing Set, rechts Side (wl) Colour: R134	n/a	1
18	64600KW3610ZC		Fairing Set, rechts Side (wl) Colour: G120	n/a	1
19	64625KW3620		Grille, links	n/a	1
21	64650KW3610ZF		Fairing Set, links Side (wl)	n/a	1
21	64650KW3610ZG		Fairing Set, links Side (wl)	n/a	1
21	64650KW3610ZE		Fairing Set, links Side (wl)	n/a	1
22	83551MB9000		Grommet	n/a	2
23	84706163670		Collar, Taillight Mounting	n/a	4
26	90001MG1000		Screw, Special, 5x16	n/a	2
27	90109KW3000		Screw, Special, 5x17	n/a	6
28	90111KW3003		Nut, Cowl Setting, 5mm	n/a	8
29	90111187000		Bolt, Flange, 6mm	n/a	1
30	90201428900		Nut, Cap, 6mm	n/a	2
31	90381MB2000		Screw, Special, 6x11	n/a	2
32	90443KF9900		Nut, Cap, 8mm	n/a	2
33	90545MJ1971		Washer, 6.5x18	n/a	2
34	9390124120		Screw, Tapping, 4x8	n/a	4
36	9405006000		Nut, Flange, 6mm	n/a	2
37	957010601200		Bolt, Flange, 6x12	n/a	1
38	957010602007		Bolt, Flange, 6x20	n/a	2
39	957010804507		Bolt, Flange, 8x45	n/a	2
40	963000602000		Bolt, Flange, 6x20	n/a	4
